Aurora 88 repairs

[antonio ilmonaco]

Hi,



Today i decided to repair my vintage Aurora 88 with a dead filler mechanism.

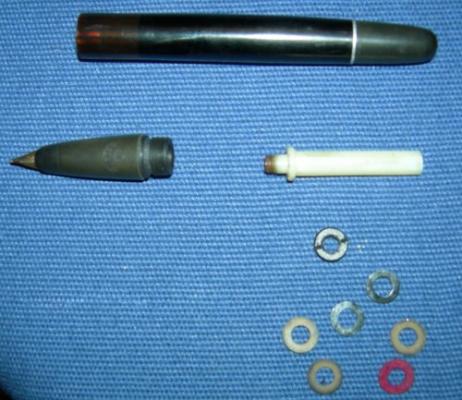

After unscrewing the section and removing the piston i realized no amount of tightening would restore the seal.

The sealing unit is made of a stack of plastic, rubber, and felt discs.

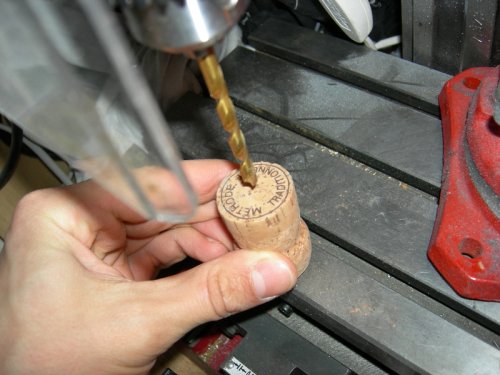

I decided to use some cork, i drill a hole using high speed and slow feed

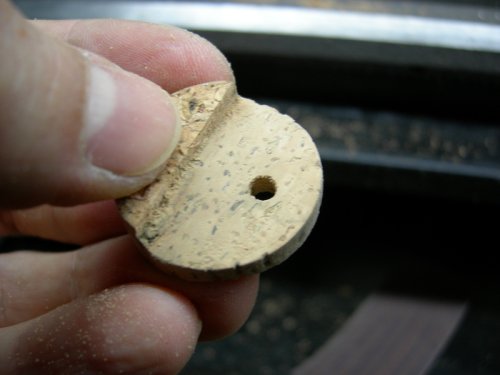

The hole is nice then i cut a slice and polish both sides with 240 then 400 grit paper

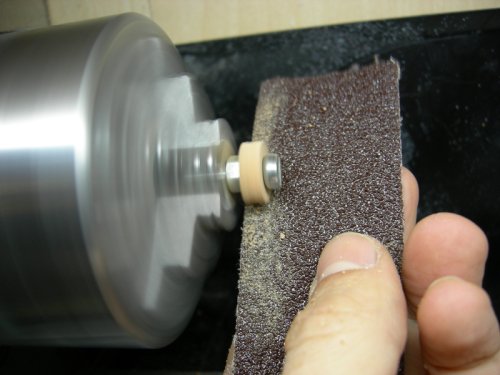

I install the cork on a custom mandrel and turn it down to the proper diameter using abrasive paper, starting with 120 cloth and refining up to 400 grit paper



I obtain a nice gasket which i install on the shaft :

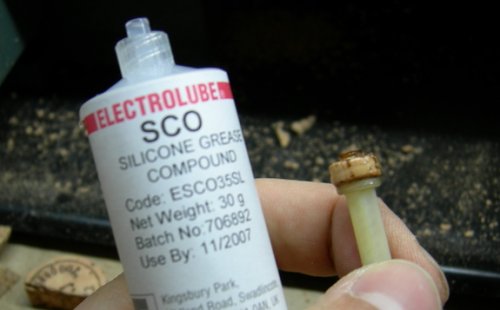

Then i use silicone grease to seal the cork, i apply some grease on the piston screw mechanism too



i also lubricate the mechanism under the knob for smooth operation. To remove the knob it's necessary to remove the small plug at the end of the barrel then unscrew the screw that's hidden under the plug.



The screw is spring-loaded and is not intended to be fully tightened. You need to adjust the screw so that the knob is not too loose nor too tight

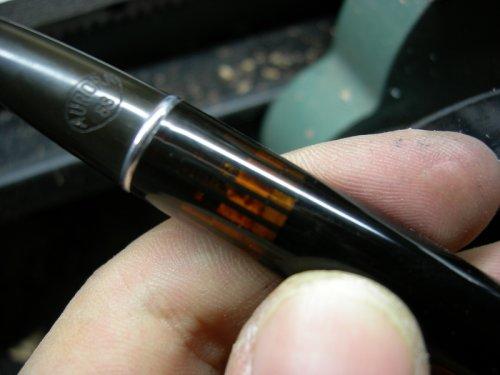

After reassembly the cork is clearly visible through the ink window



And that's one pen ready for filling!



All the best,

Antonio
