Jinhao Dadao 9019


Recommended Posts

Has anybody already disassembled a Dadao 9019?

Is the nib/housing assembly screwed in?

And the converter?



If so it could be a nice donor pen.

Link to comment
Share on other sites

  • Replies 6
  • Created
  • Last Reply

Top Posters In This Topic

  • mke

    2

  • nm4

    1

  • Lithium466

    1

  • Kornel

    1

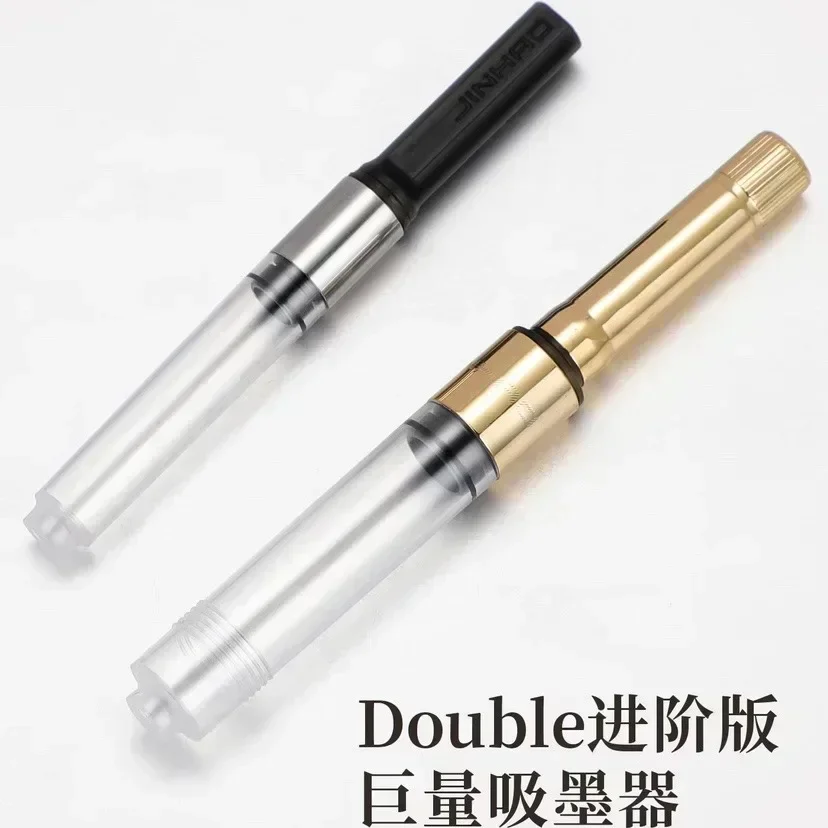

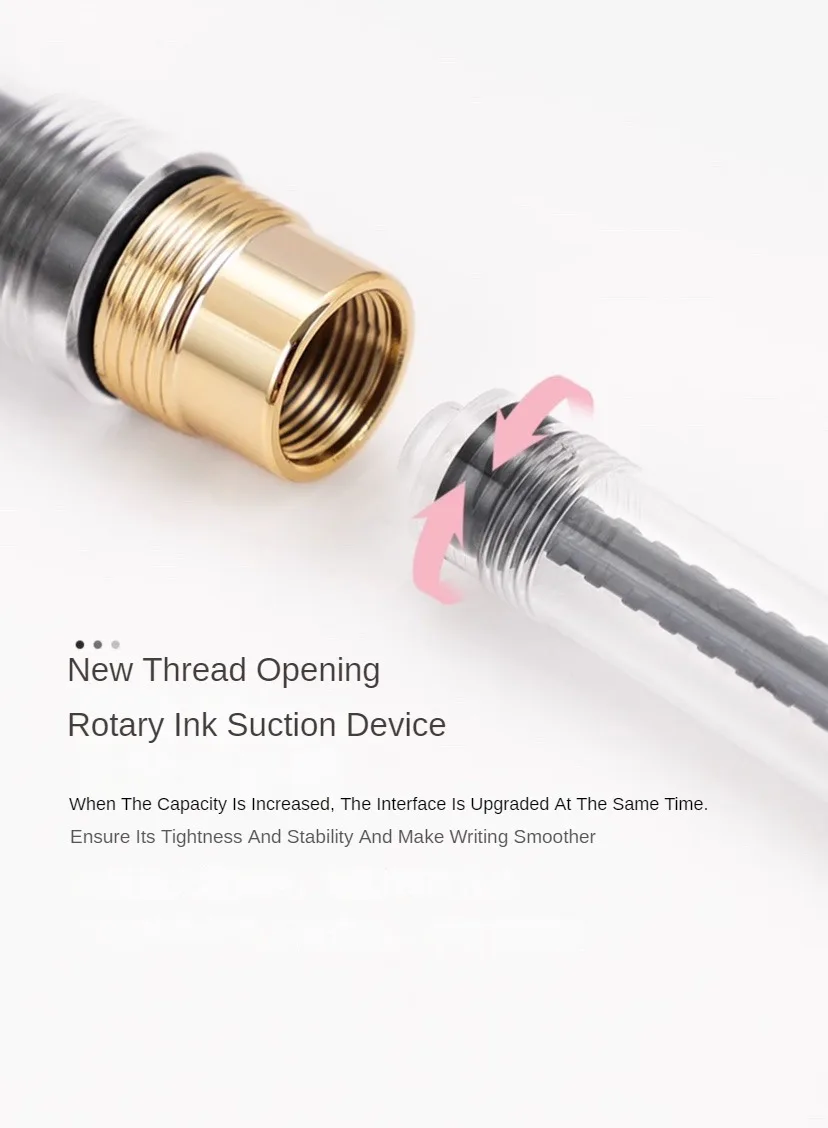

The converter is a screw in type, but with the regular international 2.6 mouth. Thus the pen can use any international cartridges or converters.

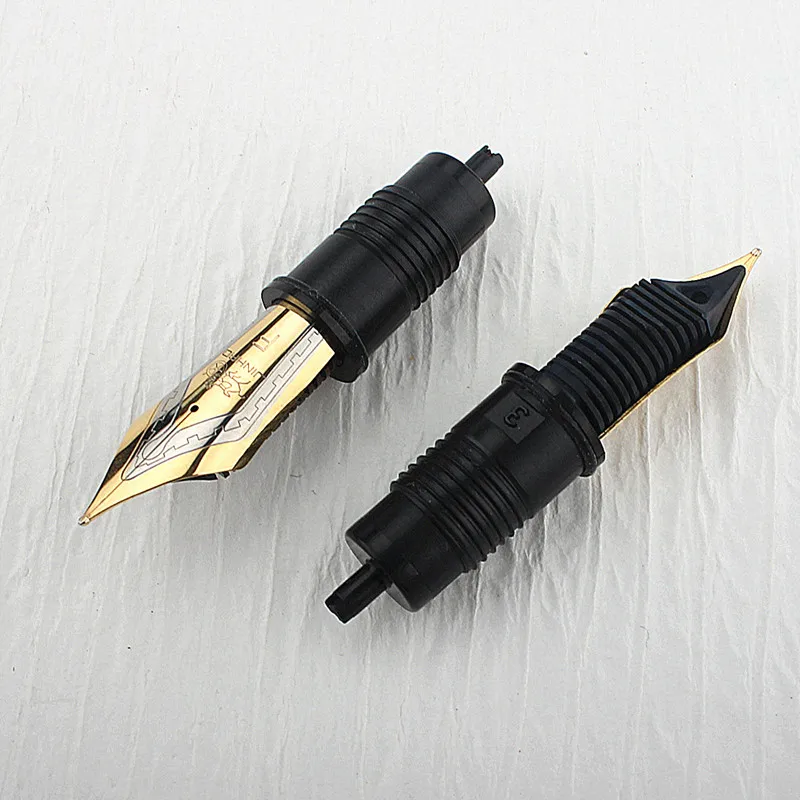

I haven't been able to screw out the nib unit, I belive it is just friction fitted.

Link to comment
Share on other sites

On mine the nib unit unscrews. 2,6mm is one of the Chinese standard, "international standard" is more 2,3/2,4mm.
You can use international standard (or whatever that means) cartridges and converters, but expect them to either get the mouth enlarged or to eventually crack.

Link to comment
Share on other sites

Mine came with a heartbeat nib and it’s probably the best medium nib I’ve ever used - ridiculously smooth and wet.  I may have just gotten lucky but am so tempted to buy a spare!   I was going to give my 9019 to an FP newbie but after writing with it I just can’t part with it.


N

Link to comment
Share on other sites

Yes, the 2.6mm is the Chinese small size. You can sometimes fit international sized cartridges and converters, but I too have seen that sometimes they will often end up cracking. They do better with actual Chinese 2.6mm cartridges and converters designed for them. I think it's pretty nice that this pen has its own dedicated large size converter so that the space can be well used.

Stolen: Aurora Optima Demonstrator Red ends Medium nib. Serial number 1216 and Aurora 98 Cartridge/Converter Black bark finish (Archivi Storici) with gold cap. Reward if found. Please contact me if you have seen these pens.

Please send vial orders and other messages to fpninkvials funny-round-mark-thing gmail strange-mark-thing com. My shop is open once again if you need help with your pen.
