Delike JingWei 精卫 (new delike pocket pen)

[PhantasmicError]

I was browsing on Taobao today and noticed that there is a new model listing of Delike. Like all delike pens, this one seems to have the no24 nib (EF, F and fude).  The barrel is brass, it weighs 45grams with cap.

Capped: 101mm

Uncapped : 116mm

Barrel diameter width: 11mm

Section diameter: 9.5mm



Comes with mini 2.6mm converter (I presume it's the usual delike converter on HyunYuan. Jinhao cartridges should fit)



The clip is fashioned similarly to moonman m7. And according to the taobao listing it might not exactly align with the nib when screwed on the back (you probably need to pull the nib and rearrange it yourself)



The finishing seems to be the same as the delike alpha (brass finish version)



Like other delike pens, this one seems to use the same screw out nib units (you can also pull the nib units out of the housing if anyone is wondering)



Needless to say as a fan of delike metal pens I have ordered this, I estimate it will be a month before I have it on my hands.







Edited August 10, 2022 by PhantasmicError
Editing info

[PhantasmicError]

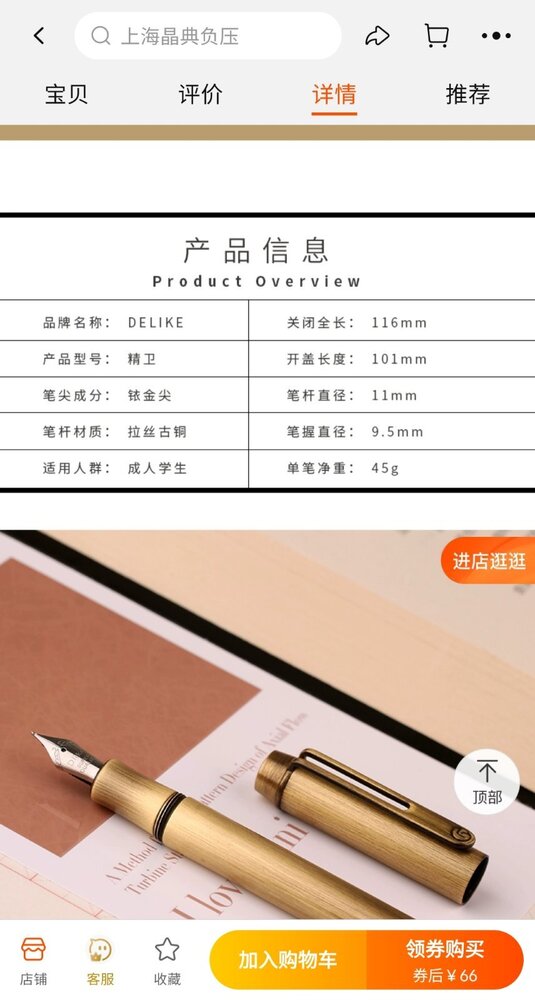

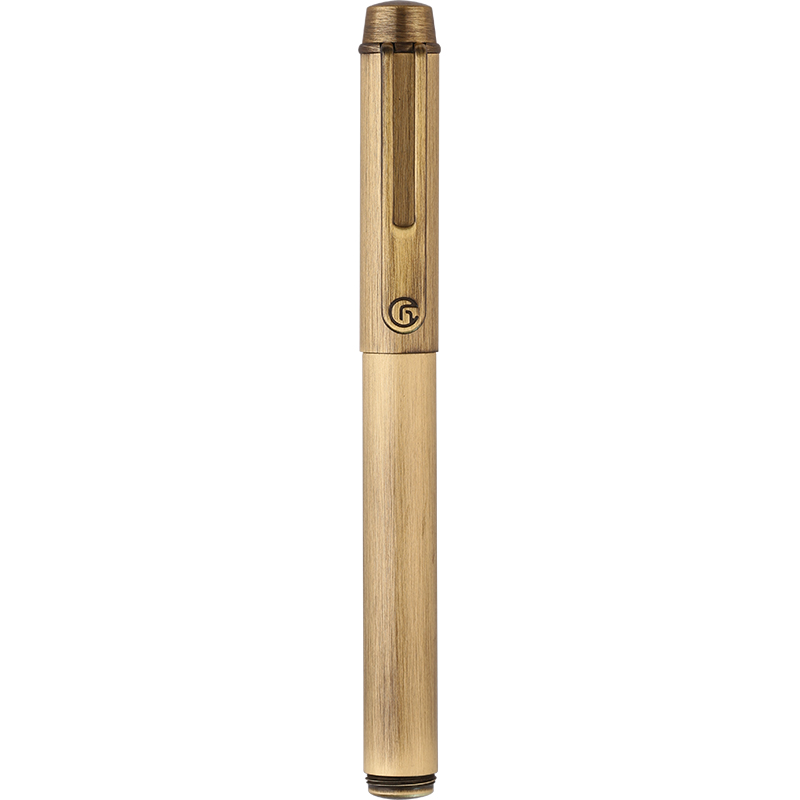

Here's the images. Not sure why they didn't upload along with the post.

[A Smug Dill]

Welcome to FPN.



2 hours ago, PhantasmicError said:

Comes with mini 2.6mm converter (I presume it's the usual delike converter



I don't think so.



2.6口徑mini抽拉上墨器 means 2.6(mm)-bore mini (push-)pull converter, not the ‘usual’ full-sized rotary-driven converter.

[PhantasmicError]

14 minutes ago, A Smug Dill said:

Welcome to FPN.





I don't think so.



2.6口徑mini抽拉上墨器 means 2.6(mm)-bore mini (push-)pull converter, not the ‘usual’ full-sized rotary-driven converter.

Delike HyunYuan uses the push pull converter so it is likely they'll be using the same type they did in HyunYuan. I am aware that it isn't the regular sized one. "usual ones on HyunYuan"  delike HyunYuan is a small pen.



Peace

Edited August 10, 2022 by PhantasmicError

[txomsy]

Looks like an attractive design. Let's wait for the reviews...

[Mech-for-i]

Well a clipped ( punt intended ) version of the previous clipless in a rough brushed finish instead of polished or black chiseled and anodised , interesting but I generally prefer full size or over size pens
