Leaking Lamy

[Eitan]

Hello

My Safari keeps leaking around the area where the cartridge enters the pen, and I cannot figure out why. I have cleaned and refilled it so many times and it keeps leaking - going down through the window and all over my hands and inside the body.

Any tips or experience with this?

I must be doing something wrong....def a silly mistake the Lamy experts here can identify in a heart-beat.

Thanks in advance!

-E

[RMN]

OK, let's have a look at this.



You have cleaned and refilled... Did you refill the cartridge?



Or did you use a converter?





And, just to make sure: You are using a LAMY cartridge or converter? (so not another brand?)



And then: Is this a new pen and has it been leaking like this from day one, or did it work properly and started to leak all of a sudden?





Now supposing you are using a a proper (new) converter in a new pen: Are you sure it is seated properly? New converters can be really tight.

Normally a Lamy pen will push it's cartridge hiome by screwing the barrel shut, but that does not work with a converter so you have to push properly.





D.ick

[carlos.q]

Your Safari should use a Lamy Z24 or Z28 converter: the red ones that have nubs on the side. If you have a Z27 converter, black with no nubs, you're using the wrong one.

[Astronymus]

Can you post pictures how you load the Safari, with cartridge or converter and an inside view of the grip section, without being loaded?

And, are you certain the Safari is genuine and not some knock-off?

[Eitan]

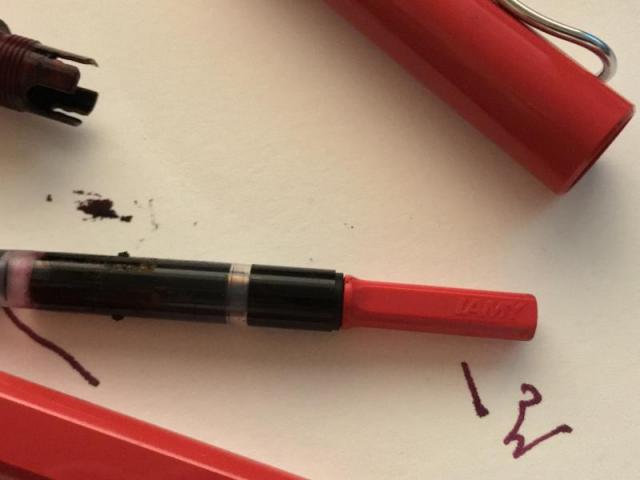

Pics here...thank you!!



Can you post pictures how you load the Safari, with cartridge or converter and an inside view of the grip section, without being loaded?

And, are you certain the Safari is genuine and not some knock-off?

[Eitan]

Inside of grip...not sure this one is helpful...



Can you post pictures how you load the Safari, with cartridge or converter and an inside view of the grip section, without being loaded?

And, are you certain the Safari is genuine and not some knock-off?

[Astronymus]

What are those radial struts? Never seen that. No wonder you don't get a seal. And there is a strange gap between handle and reservoir on the converter. I'm not sure this pen and converter are genuine. Where did you get it, was the converter included? (It shouldn't.)

[alexwi]

You seem to have the right converter.



When you insert the converter in the section, the 2 nubs on the side of the converter go into the 2 thin slots on the sides of the section, and they must go in all the way. If they don't, then there's something inside the section that's preventing this from happening.



If it's a fake pen, like Astron's suggesting, then, more than likely, this pen will take an International type converter or cartridge.



alex

[Astronymus]

The inside should be smooth. No struts or anything. This pen is a fake.

Edited June 8, 2018 by Astron

[pen2paper]

did you put the arrow & marks in the section. Just looked at three of various years, they have no marks inside..

where did this pen come from?

[LizEF]

FWIW, here's the inside of the section of an Al-Star, just so you can see the difference:



http://www.paradoxcommunity.com/vps/AlStarSection.jpg

Edited June 8, 2018 by LizEF

[Eitan]

Wowzerinos.



I had really checked this pen thoroughly against all of the other signs of counterfeitage on so many websites...but I think we have found another telltale. Hard to find, not noticeable unless under certain circumstances, and quite hidden from view,



...and the #LamyFake struggle continues!

[ErrantSmudge]

I have a Safari (blue) I bought from an Amazon retailer that I thought was genuine, but it has the little radial struts in the section just like PearlJamFan. Checking my other Safaris (all purchased from authentic Lamy dealers), none have the struts.



I have to say my blue Safari is a very well-executed counterfeit. (I havent had problems with cartridges or with genuine Lamy converters in this pen).

Edited June 10, 2018 by ErrantSmudge

[alexwi]

Hi,



I just checked five Safaris (2 charcoal and 3 special edition orange), and they're all smooth in there. The orange ones were purchased directly from Lamy (I had a stationery store in a previous life) and the others at stationery stores.



alex

[Eitan]

Yup. Pretty startling. I am sending them back.



I have a Safari (blue) I bought from an Amazon retailer that I thought was genuine, but it has the little radial struts in the section just like PearlJamFan. Checking my other Safaris (all purchased from authentic Lamy dealers), none have the struts.

I have to say my blue Safari is a very well-executed counterfeit. (I havent had problems with cartridges or with genuine Lamy converters in this pen).

[Calabria]

FWIW, here's the inside of the section of an Al-Star, just so you can see the difference:



http://www.paradoxcommunity.com/vps/AlStarSection.jpg

Amazing picture!

[LizEF]

Amazing picture!



Thanks. It was taken with this thing: https://www.amazon.com/dp/B00XNYXQHE/

[Flippy]

What are those radial struts? Never seen that. No wonder you don't get a seal. And there is a strange gap between handle and reservoir on the converter. I'm not sure this pen and converter are genuine. Where did you get it, was the converter included? (It shouldn't.)

I have those same radial struts, but I don't have any leakage. The pen is in excellent condition as had no problems, unlike other counterfeits. If it has struts, then is my pen 100% fake? I swear that I have had no issues with it and I did examine the pen very carefully. The nib engraving is excellent, the pen weighs the same as a regular Safari and the ink window aligned every time.



Josh

[Flippy]

3 of the other Lamys that I bought off reputable websites have the struts, which is very confusing.



What is going on? Are we sure that this is telltale or new feature Lamy added? I'm not having any problems with leaking due to the struts.



Josh

Edited June 13, 2018 by FlippyThePen

[Eitan]

I am going to fwd this question to Goulet...



3 of the other Lamys that I bought off reputable websites have the struts, which is very confusing.



What is going on? Are we sure that this is telltale or new feature Lamy added? I'm not having any problems with leaking due to the struts.



Josh
